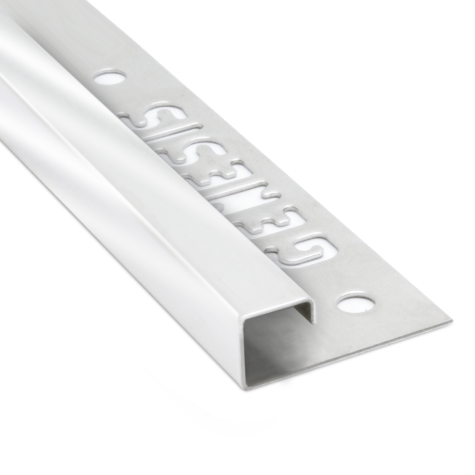

Genesis Square Edge Stainless Steel Tile Trim
2.5 Metre Length
Genesis Square Edge Stainless Steel Tile Trim is manufactured from high quality grade stainless steel making it ideal for achieving a strong seamless edge on porcelain tiles, ceramic tiles and various other substrates.
This tiling trim can be specified where high levels of hygiene are sought, such as food processing industries, breweries, dairies and hospitals. These profiles offer superb resistance to principal chemicals and atmospheric agents.
We offer two different grades of stainless steel, either standard 304 Grade or superior quality 316 Grade.
Available in various trim depths these box edge stainless steel tile trims work great with dark contrasting tiled areas to produce a stunning metalic edge or stylish wall feature and work equally well with lighter tiles as a complimentory finish.
The tiling trim we supply is 2.5 Metres in length and is available in either polished stainless steel or brushed stainless steel finishes.
When choosing the depth of your Genesis Square Edge Stainless Steel Tile Trim we recommend allowing an extra 2mm of depth for the bed of adhesive beneath the tile being applied e.g. a 10mm deep tile trim would ideally be fitted with a 8mm deep tile.
Genesis Square Edge Stainless Steel Tile Trim is suitable for external use and recommended where there is a heavy amount of wear and tear or where a high level of surface protection is required.
Where appropriate, trims are supplied with transparent protective film offering added protection during transport, storage and installation.
Main Features:
- High Quality Stainless Steel - Grade 304 or 316
- Unique Box Shape Profile
- Punched FlangeBase For superior Tile Adhesion
- 2.5 Metre Length
- Hard wearing surface
- Available in Polished Stainless Steel or Brushed Stainless Steel Finish
- 3 Trim Depth Options
- Tile Edge Protection
- Commercial and Industry Specified
- Protective Transport Film
Available Trim Depth Sizes:
- 8mm Depth (Recommended for 6mm depth tiles)
- 10mm Depth (Recommended for 8mm depth tiles)
- 12mm Depth (Recommended for 10mm depth tiles)
Suitable For:
- Floors & Walls
- Dividing Tiles
- Edge Protection
- Feature Border Trim
- Vertical Feature Trim
- Horizontal Feature Trim
Key Areas of Use:
- Internal Living Areas
- Bathrooms
- Kitchens
- Hallways
- Lounges
- External Areas
- Patios
- Hospitality, Restaurants, Hospitals, Commercial
| Trim Material | Stainless Steel (Grade 304 & Grade 316) |
| Trim Depths Available | 8mm, 10mm, 12mm |
| Length | 2.5 Metre |
| Width | 29mm-33mm |
| Finish | Polished Stainless steel, Brushed Stainless Steel |
| Handling & Storage | Stored and handled from original packaging, Protective film |
| Suitable Tile Depth Information | Tile Depth + upto 2mm Adhesive = Trim Depth |
| Weight | 0.4kg |
| Accreditations | Industry specified |
How do I fit Genesis Square Edge Stainless Steel Tile Trim ?
To fit Genesis stainless steel tiling trims, ensure that the base of the tile being applied is positioned onto the widest part of the trim which has perforated sections to allow for tile adhesive to pass through. Position the flat inside edge of the tile trim against the side of the tile and the front face of the tile trim should be flush with the front face of the tile.
How do you cut Genesis Square Edge Stainless Steel Tile Trim ?
We recommend using a Genesis Mitre block tool and a hand saw with our tile trims to achieve an accurate clean cut. you can find more information about mitre blocks and our cutting tools in the related products section at the bottom of the page.
Can I fit these tile trims outside ?
Yes, we actually recommend that stainless steel tile trims to be used for external tile or paving installations instead of aluminium due to their durable nature and resistance to extreme wear and tear.
What products do I use to clean my tile trim ?
No specific cleaning products are required to maintain and clean your metal tile edging trim. We simply recommend using a soft cloth or duster and a everyday cleaning product like polish to remove any smears, stains or finger prints.
How do I know which tile trim size will fit my tiles?
To work out the required tile trim depth to fit your tiles we recommend the following. First measure the depth of your tile in mm and then add an extra 2mm onto this measurement to allow for your tile adhesive. This calculation will provide you with the correct trim depth for your tiles. e.g. 8mm tile depth + 2mm adhesive = 10mm deep tile trim.
How do I work out how many lengths of trim I will need ?
The easiest way to work out how many tiling trim lengths you will need is to measuring the length and height of the tiled area with a tape measure and add these measurements together. This calculation should give you the overall amount of tile trim required in linear metres. Our trims are usually supplied in either 2.5 Metre or 2.7 Metre lengths offering better coverage for large tiled areas.
