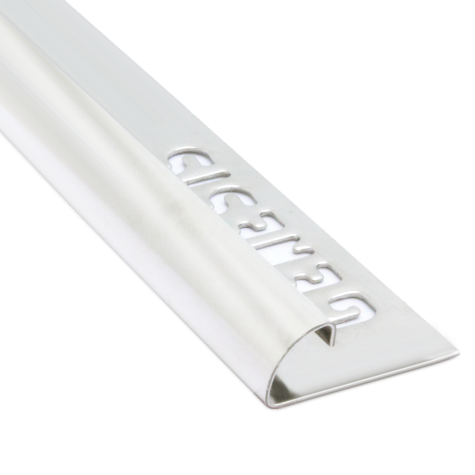

Genesis Round Edge/Quadrant Stainless Steel Tile Trim
Product Description
Genesis Round Edge/Quadrant Stainless Steel tile trims are manufactured from either 304 or 316 grade stainless steel making it ideal to achieve a strong seamless edge on porcelain tiles, ceramic tiles and various other wall or floor substrates. This tiling trim is designed to be used where high levels of hygiene are required, such as food processing, brewereies, dairies and hospitals. They offer superb resistance to principal chemical and atmospheric agents. Available in various trim depths and either a natural stainless steel or brushed stainless steel finish. Genesis Tile trims are supplied with a transparent protective film offering added protection during transport, storage and installation. Simply peel off after installation.
Features
- High Quality Stainless Steel - Grade 304 or 316
- Round Shape Profile
- Punched FlangeBase For superior Tile Adhesion
- 2.5 Metre Length
- Hard wearing surface
- Available in Natural Stainless Steel or Brushed Stainless Steel Finish
- 3 Trim Depth Options
- Tile Edge Protection
- Commercial and Industry Specified
Technical Information
| Material | Stainless Steel Grade 304 & Stainless Steel Grade 316 |
| Depths | 8mm, 10mm, 12mm |
| Lengths | 2.5m |
| Width | 16.5mm |
| Finishes | Steel, Brushed |
| Handling & Storage | Protective Film |
| Suitable Tile Depth Information | Tile Depth + upto 2mm Adhesive = Trim Depth |
| Technical | Stainless Steel AISI 304 / DIN1.4301 Surface BA1 or Stainless Steel AISI 316 DIN1.4436 |
Datasheet(s):
ESQ_datasheet.pdf
