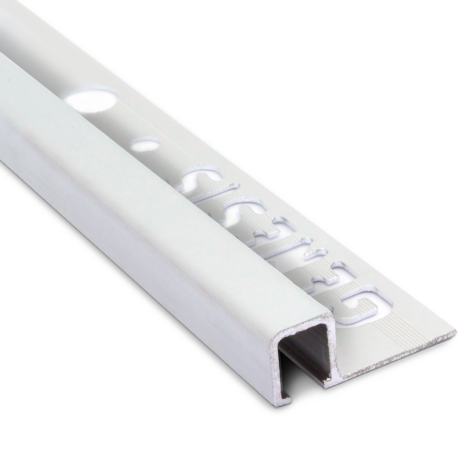

Genesis Contour Edge Aluminium Tile Trim
2.5 Metre length
Main Features:
- Industry recognised brand
- Robust metal aluminium
- Contour edge Profile
- Perforated installation base for superior adhesion
- 2.5 metre length
- Hard wearing surface
- Matt silver or bright silver finishes
- 3 trim depth options
- Protects tile edges
- Custom RAL finish option available
Available Trim Depth Sizes:
- 8mm Depth (Recommended for 6mm depth tiles)
- 10mm Depth (Recommended for 8mm depth tiles)
- 12mm Depth (Recommended for 10mm depth tiles)
Suitable For:
- Floors & Walls
- Dividing Tiles
- Edge Protection
- Feature Border Trim
- Vertical Feature Trim
- Horizontal Feature Trim
Key Areas of Use:
- Internal Living Areas
- Bathroom
- Kitchen
- Hallway
- Lounge
- Dining Areas
- Conservatories
| Trim Material | Anodised Aluminium |
| Available Trim Depths | 8mm, 10mm, 12mm |
| Available Trim Lengths | 2.5 Metre |
| Width | 27mm |
| Available Finishes | Matt Silver, Bright Silver |
| Handling & Storage | Stored and handled from original packaging, Protective film |
| Suitable Tile Depth Information | Tile Depth + upto 2mm Adhesive = Trim Depth |
| Weight | 0.3kg |
| Accreditations | Aluminium AA 6063 T6 / UNS A96063 anodised to DIN 17611 |
How do I fit Genesis Contour Edge Aluminium Tile Trim ?
To fit Genesis tiling trims, ensure that the base of the tile being applied is positioned onto the widest part of the trim which has perforated sections to allow for tile adhesive to pass through. Position the flat inside edge of the tile trim against the side of the tile and the thinnest top edge should be flush with the front face of the tile.
How do you cut Genesis Contour Edge Aluminium Tile Trim ?
We recommend using a Genesis Mitre block tool and a Genesis hand saw with these tile trims to achieve an accurate clean cut. you can find more information about Genesis mitre blocks and Genesis cutting tools in the related products section on the left of the page.
What products do I use to clean my tile trim ?
No specific cleaning products are required to maintain and clean your metal tile edging trim. We simply recommend using a soft cloth or duster and an everyday cleaning product like polish to remove any smears, stains or finger prints.
How do I know which tile trim size will fit my tiles?
To work out the required tile trim depth to fit your tiles we recommend the following. First measure the depth of your tile in mm and then add an extra 2mm onto this measurement to allow for your tile adhesive. This calculation will provide you with the correct trim depth for your tiles. e.g, 8mm tile depth + 2mm adhesive = 10mm deep tile trim.
How do I work out how many lengths of trim I will need ?
The easiest way to work out how many tiling trim lengths you will need is to measure the length and height of the tiled area with a tape measure and add these together. This calculation should give you the overall amount of tile trim required in linear metres. Our trims are usually supplied in either 2.5 Metre or 2.7 Metre lengths offering better coverage for larger tiled areas.
