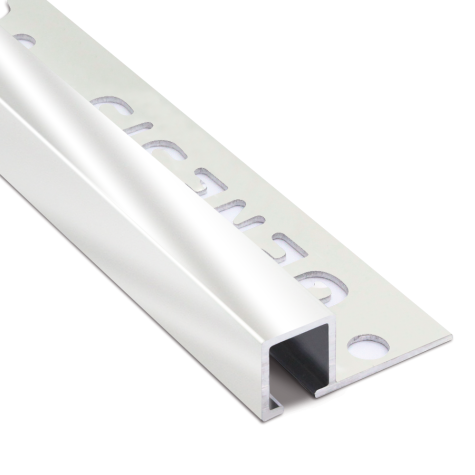

Genesis Square Edge Aluminium Tile Trim
Product Description
Genesis Square Edge Aluminium Tile trims are a revolutionary and versatile profile. They provide a great alternative to a standard straight edge or L shaped angle trim. The TDP tile trim offers a luxurious finish to any tiled edge and can also be used as a feature strip in other wall and floor applications. The extruded aluminium profile presents a stylish modern appearance once installed and is also compatible with matching corner pieces (EDP) to obviate sharp edges where mitring is necessary. The trims are available in 2.5m lengths are available in 4 depth options and 16 stylish finishes. Genesis Tile trims are supplied with a transparent protective film offering added protection during transport, storage and installation. Simply peel off after installation. Genesis aluminium trims can be supplied in a bespoke powder coated finish to any RAL number, a quotation can be supplied upon request.
Features
- Industry Recognised Brand
- Robust Metal Aluminium
- Stylish Box Shape Design
- Perforated installation Base For superior Adhesion
- 2.5 Metre Length
- Hard wearing surface
- 17 Stylish Finish Options
- 4 Trim Depth Options
- Protects Tile Edges
- Custom RAL Finish Option Available
Technical Information
| Material | Aluminium |
| Depths | 8mm, 10mm, 12mm, 22.5mm |
| Lengths | 2.5m |
| Width | 27mm |
| Finishes | White, Matt White, Black, Matt Black, Brushed Black, Matt Silver, Bright Brass, Brushed Brass, Bright Silver, Brushed Silver, Bright Copper, Brushed Copper, Granite, Bath Stone, Sand Stone, Dark Granite |
| Handling & Storage | Protective Film |
| Suitable Tile Depth Information | Tile Depth + upto 2mm Adhesive = Trim Depth |
| Technical | Aluminium AA 6063 T6 / UNS A96063 anodised to DIN 17611 |
Datasheet(s):
TDP_datasheet.pdf
