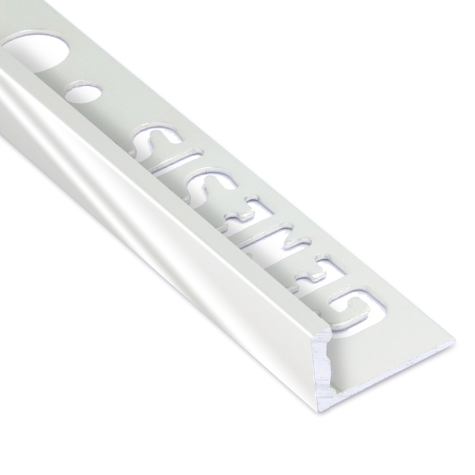

Genesis Straight Edge Aluminum Tile Trim
Product Description
Genesis Straight Edge Aluminium Tile Trims are one of the most industry recognised brands of tiling trim available. This comprehensive range of robust profiles are manufactured from top quality aluminium and have been specifically designed to protect corners and edges and are perfect for all types of wall and floor installations. Genesis Straight Edge Aluminium Tile Trims are available in 2.5m and 2.7m lengths (dependent on finish) and are available in a huge range of finish and depth options. Genesis Aluminium Tile Trims create a stylish aesthetic finish as well as an effective protective edge when installed with all kinds of floor and wall tiles and other coverings. Genesis Tile trims are supplied with a transparent protective film offering added protection during transport, storage and installation. Simply peel off after installation. Genesis aluminium trims can be supplied in a bespoke powder coated finish to any RAL number, a quotation can be supplied upon request.
Features
- Industry recognised brand
- Robust Metal Aluminium
- Classic L Shape Profile
- Perforated installation Base for superior adhesion
- 2.5 Metre Lengths / 2.7 Metre Lengths
- Hard wearing surface
- 29 Stylish Finish Options
- 10 Trim Depth Options
- Protects Tile Edges
- Custom RAL Finish Option Available upon request
Technical Information
| Material | Aluminium |
| Depths | 2.25mm, 3.25mm, 4.25mm, 6mm, 8mm, 10mm 12mm, 15mm, 18mm, 22.5mm |
| Lengths | 2.5m & 2.7m (Milled finish only) |
| Width | 21mm & 38mm (ESA225 only) |
| Finishes | White, Matt White, Grey, Black, Matt Black, Brushed Black, Sand, Soft Grey, Gunmetal, Auburn, Milled, Matt Silver, Pewter, Bright Brass, Nickel, Bronze, Brushed Brass, Bright Silver, Matt Nickel, Brushed Silver, Bright Copper, Brushed Copper, Chalk Stone, Granite, Bath Stone, Sand Stone, Dark Granite, Bronzite, Nordic Stone |
| Handling & Storage | Protective Film |
| Suitable Tile Depth Information | Tile Depth + upto 2mm Adhesive = Trim Depth |
| Weight | 0.2kg |
| Technical | Aluminium AA 6063 T6 / UNS A96063 anodised to DIN 17611 |
Datasheet(s):
ESA_EFA_datasheet.pdf
