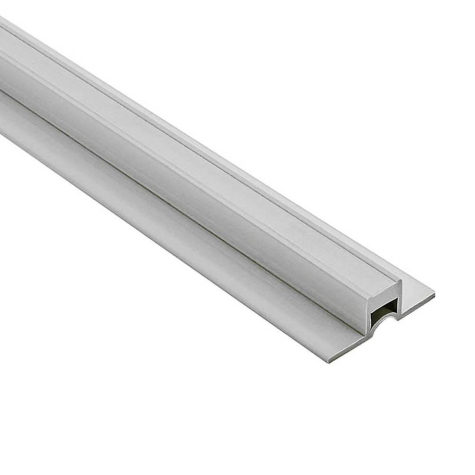

DURAFLEX Aluminium / EPDM Thin Bed Expansion Joint
Product Description
DURAFLEX profiles are available in either, Aluminium, Stainless Steel or PVC. The structure consists of two profiles with an EPDM infill. The specially developed expansion joint profile absorbs heavy stresses and spreads them evenly throughout the flooring and the foundations. The DURAFLEX Thin Bed Expansion joints are suitable for floors subject to high mechanical loads such as warehouses and production halls as well as rolling loads (forklift trucks). It also prevents transmission of footfall and sounds from other objects. Important: any expansion joints in the foundations need to be followed precisely. The DURAFLEX Thin Bed Expansion Joint profiles are supplied in 2.5m lengths and are available in 13 depth options.
Features
- For use in industrial projects
- Trafficable with a forklift
- Easy profile mounting
- 13 Depth Options
- EPDM Infill
Technical Information
| Material | Aluminium |
| Depths | 3mm,4.5mm, 6mm, 8mm, 10mm, 12.5mm, 15mm, 16.5mm, 18mm, 20mm, 22mm, 25mm, 30mm |
| Lengths | 2.5m |
| Visible Width | 10mm |
| Finishes | Grey Insert |
| Handling & Storage | Protective Film |
Datasheet(s):
DFA_datasheet.pdf
